SYIL x Siemens SINUMERIK

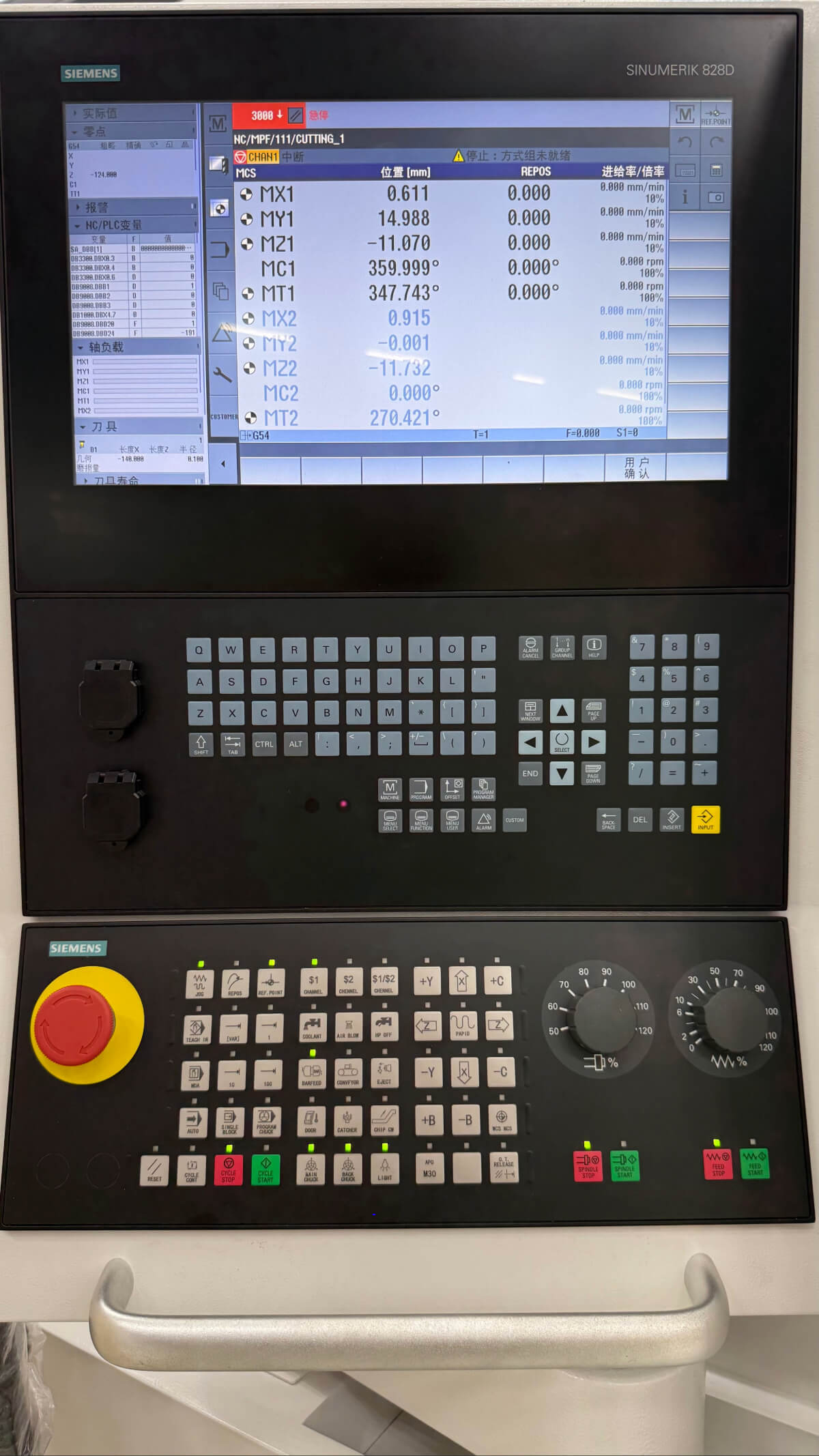

The SYIL G2 comes standard with the Siemens SINUMERIK 828D control system. With its advanced CNC performance, the SINUMERIK 828D sets productivity standards for turning on SYIL machines. The addition of new SINAMICS drives and SIMOTICS motion control motors makes the SINUMERIK 828D even more productive. Its robust hardware architecture and intelligent control algorithms, combined with high-quality drive and motor technology, ensure maximum dynamics and precision during machining.

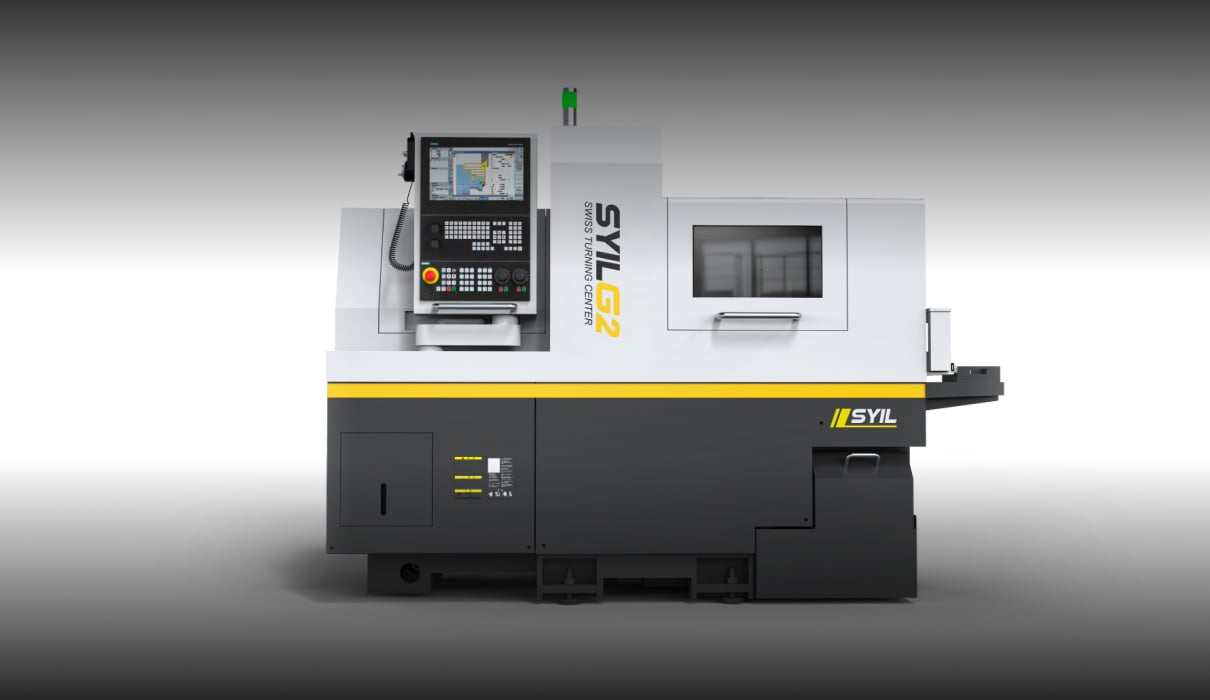

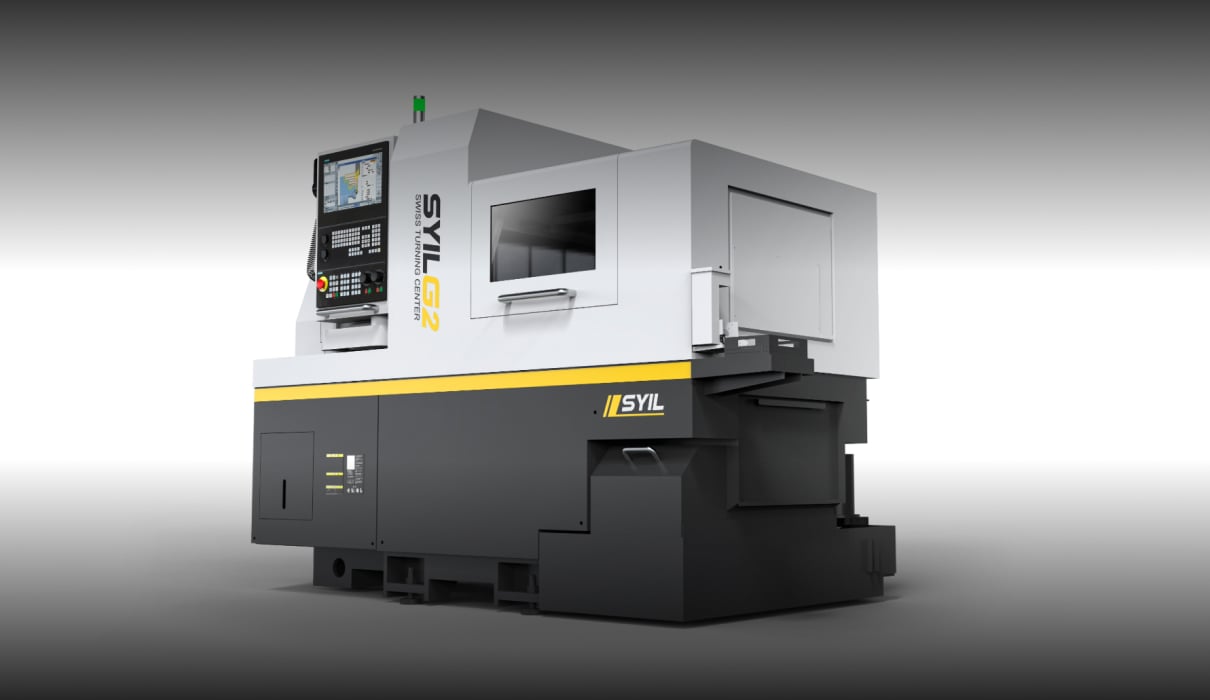

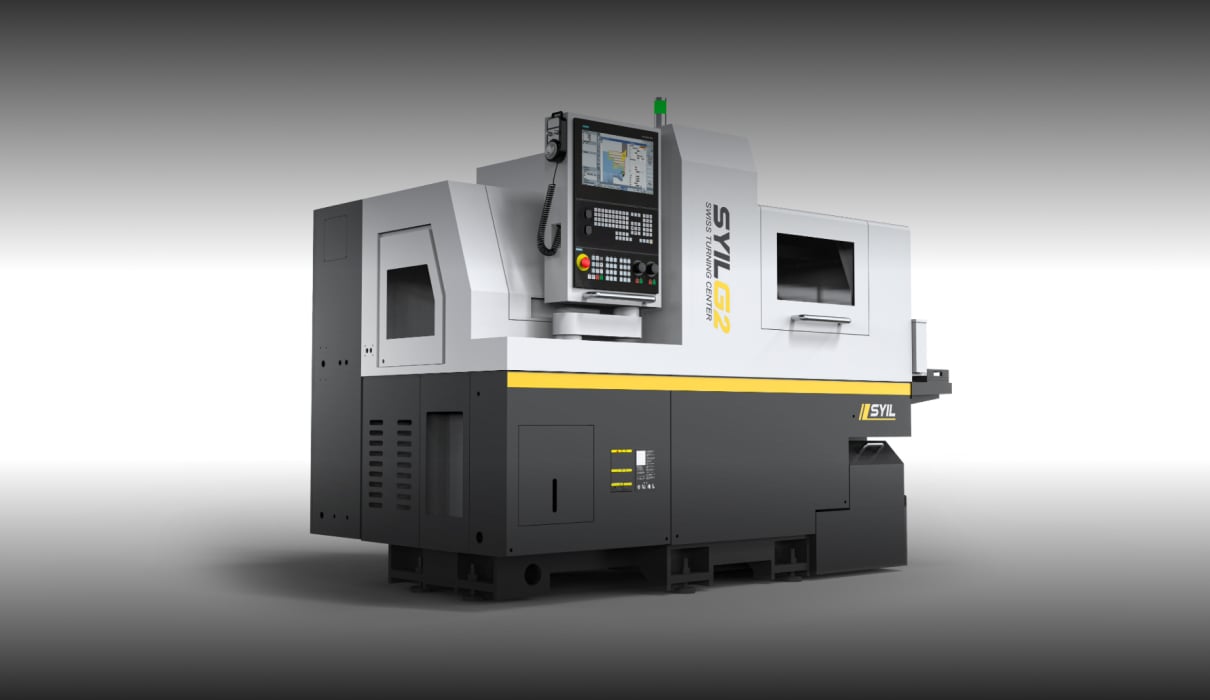

SYIL G2
The G2 is a high-performance Swiss-type CNC lathe, ideal for machining small and long parts with exceptional precision and stability.
.jpg?width=5760&name=g2-3%20(1).jpg)
SYIL G2 Features
Ideal for machining small and long parts with exceptional precision and stability.
.jpg?width=5760&name=g2-2%20(1).jpg)
Technical Specifications
G2
Processing capabilities
Maximum processing bar diameter(mm)
Φ20 mm
Spindle through hole diameter(mm)
Φ25
Maximum processing length(mm) &(inch) (No guide bushing)
2.5D(maximum 50)
Maximum processing length(mm) &(inch) (Fixed guide sleeve)
220(optional)

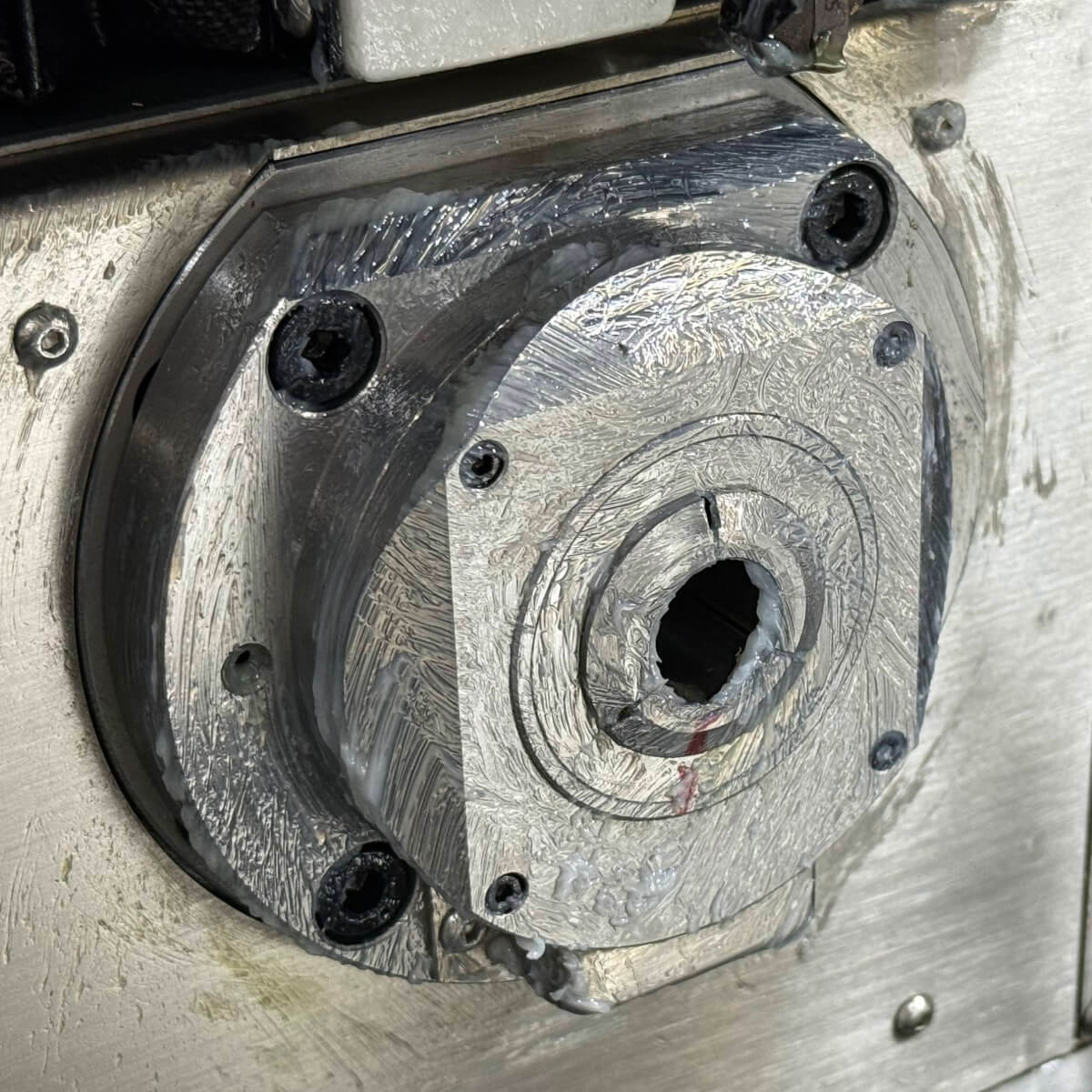

Maximum processing length(mm) &(inch) (Rotary guide sleeve)
180
Maximum clamping diameter of back spindle(mm)
Φ20
Maximum drilling diameter of spindle(mm)
Φ10
Maximum tapping diameter of spindle
M10
Maximum drilling diameter of back spindle(mm)
Φ10
Maximum tapping diameter of back spindle
M10
Maximum drilling diameter of radial live tool(mm)
Φ8
Maximum tapping diameter of radial live tool
M6
Maximum drilling diameter of back powered tool(mm)
Φ8(optional)
Maximum tapping diameter of back powered tool
M6(optional)
Mechanical capabilities
Spindle speed(r/min)
10000(rotary guide sleeve 8000)
Back spindle speed(r/min)
10000
Radial live tool speed(r/min)
6000

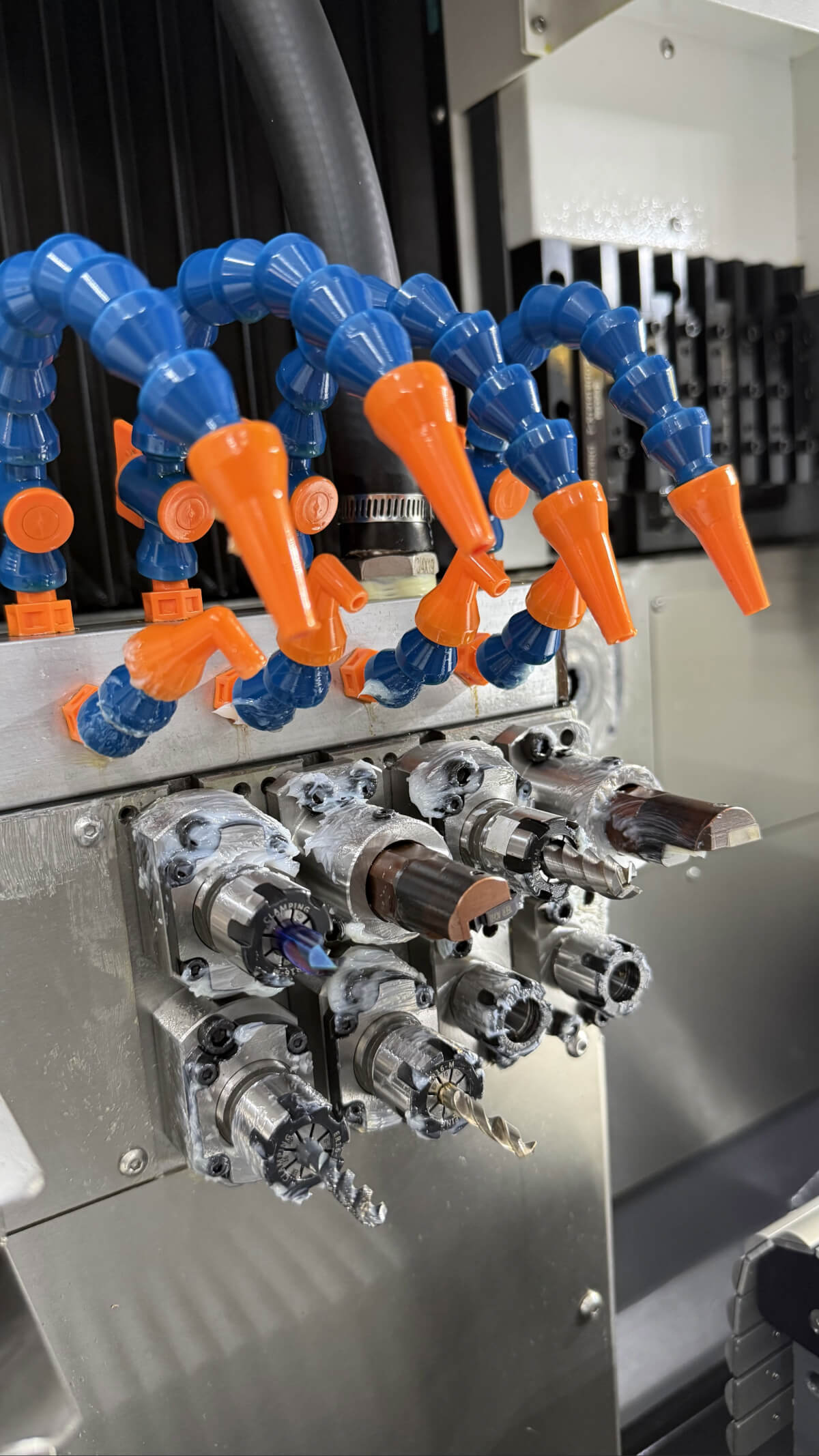

Back live tool speed(r/min)
6000 (optional)
Rapid moving speed(m/min)
24(X2, Y1, Z1, Z2)
Rapid moving speed(m/min)
20(X1)
Spindle runout(mm)
≤0.002
Repeat positioning accuracy(mm)
≤0.003
Tool system
External cylindrical tools
1(□16)+6(□12)
End face machining tools
4(ER16)
Radial live tools
2(ER11)+3(ER16)
Deep hole tool holder
2(ER16, optional)
Back machining tools
4(ER16)
Back powered tool
Optional
Back turning tool holder
none
Motor power
Spindle(kw)
6.5
Linear drive shaft(kw)
1(Siemens: 0.94)
Radial live tool(kw)
1(Siemens: 0.94)
Back live tool(kw)
1(Siemens:0.94)(Optional)
Cooling pump(kw)
0.4
Others
Size (mm)
2565x1350x1850
Weight (kg)
2900
