SYIL x Siemens SINUMERIK
The SYIL G3 comes standard with the Siemens SINUMERIK 828D control system. With its advanced CNC performance, the SINUMERIK 828D sets productivity standards for turning on SYIL machines. The addition of new SINAMICS drives and SIMOTICS motion control motors makes the SINUMERIK 828D even more productive. Its robust hardware architecture and intelligent control algorithms, combined with high-quality drive and motor technology, ensure maximum dynamics and precision during machining.
%20(1).png?width=5760&name=Mask%20group%20(22)%20(1).png)

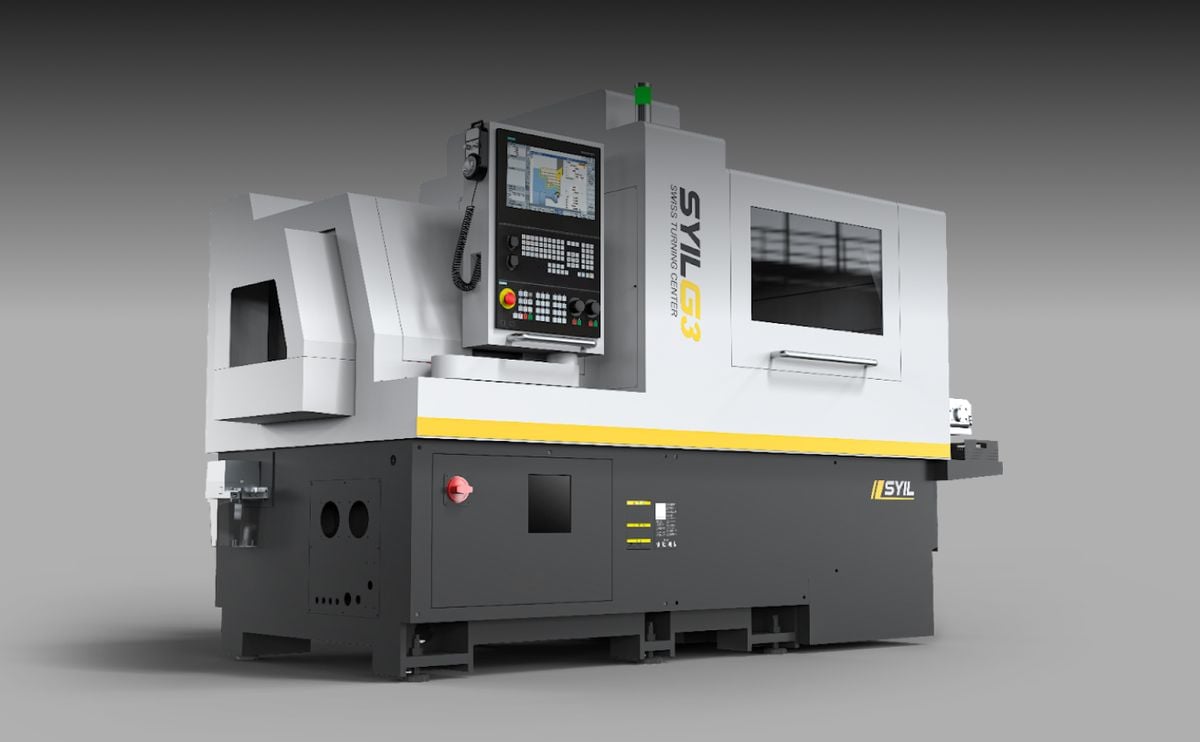

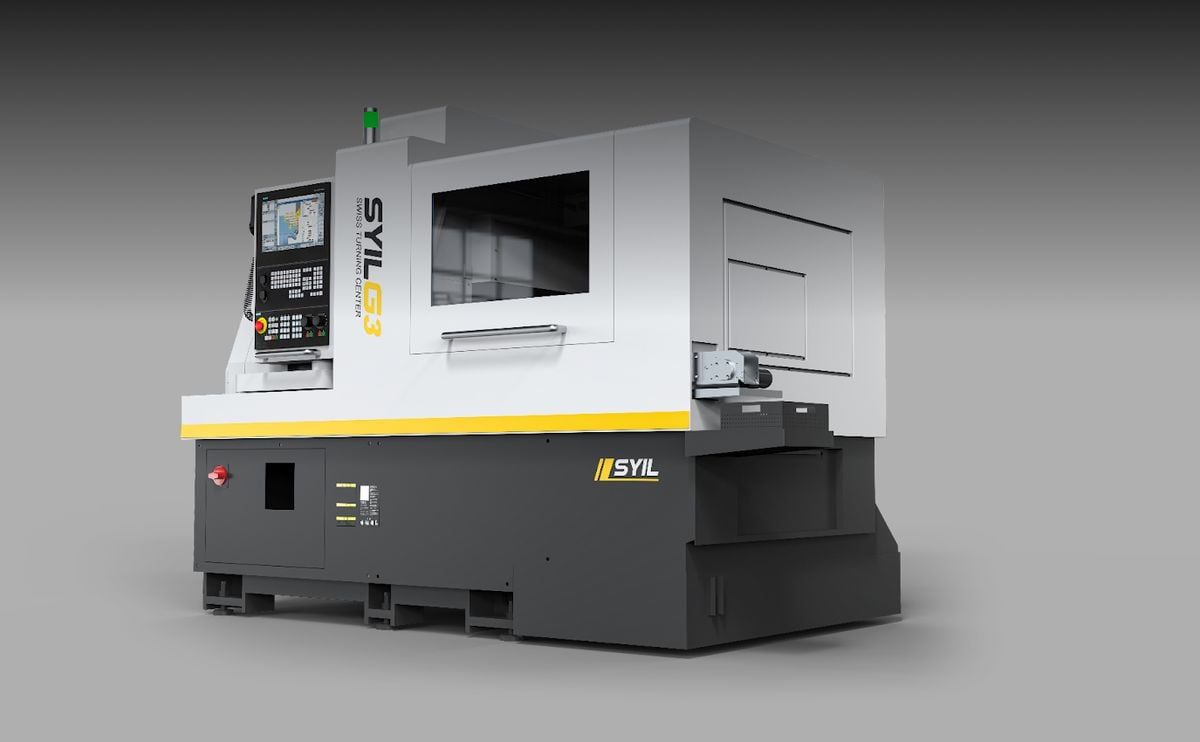

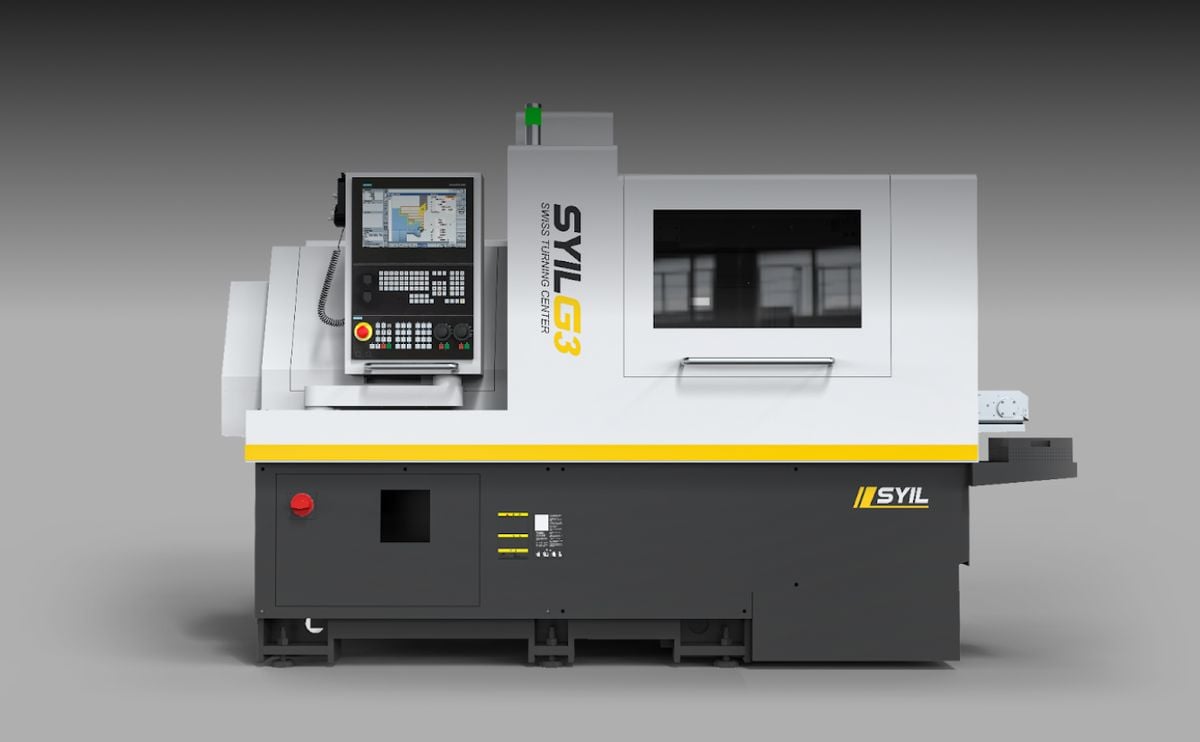

SYIL G3
The G3 is a high-performance Swiss-type CNC lathe, ideal for machining small and long parts with exceptional precision and stability.
.png?width=5760&name=image%20(32).png)
SYIL G3 Features
Ideal for machining small and long parts with exceptional precision and stability.
-1.png?width=5760&name=image%20(31)-1.png)
Technical Specifications
G3 L326
G3 L385
G3 L386
Processing capabilities
Maximum processing bar diameter(mm)
Φ32
Φ38
Φ38
Spindle through hole diameter(mm)
Φ37
Φ39
Φ39
Maximum processing length(mm) &(inch) (No guide bushing)
2.5D(maximum 80)
2.5D(maximum 90)
2.5D(maximum 90)
Maximum processing length(mm) &(inch) (Fixed guide sleeve)
--
--
--
Maximum processing length(mm) &(inch) (Rotary guide sleeve)
310
310
310
Maximum clamping diameter of back spindle(mm)
Φ32
Φ38
Φ38
Maximum drilling diameter of spindle(mm)
Φ13
Φ13
Φ13
Maximum tapping diameter of spindle
M12
M12
M12
Maximum drilling diameter of back spindle(mm)
Φ10
Φ10
Φ10
Maximum tapping diameter of back spindle
M10
M10
M10
Maximum drilling diameter of radial live tool(mm)
Φ10
Φ10
Φ10
Maximum tapping diameter of radial live tool
M8
M8
M8
Maximum drilling diameter of back powered tool(mm)
Φ8
Φ8(optional)
Φ8
Maximum tapping diameter of back powered tool
M6
M6(optional)
M6
Mechanical capabilities
Spindle speed(r/min)
8000(rotary guide sleeve 6000)
6000(rotary cilinder)
6000(rotary cilinder)
Back spindle speed(r/min)
8000
8000
8000
Radial live tool speed(r/min)
6000
6000
6000
Back live tool speed(r/min)
6000
6000(optional)
6000
Rapid moving speed(m/min)
30(X2, Y1, Z1, Z2)
30(X2, Y1, Z1, Z2)
30(X2, Y1, Z1, Z2)
Rapid moving speed(m/min)
24(X1, Y2)
24(X1, Z1)
24(X1, Y2, Z1)
Spindle runout(mm)
≤0.002
≤0.002
≤0.002
Repeat positioning accuracy(mm)
≤0.003
≤0.003
≤0.003
Tool system
External cylindrical tools
6(□16)
1(□20)+5(□16)
1(□20)+5(□16)
End face machining tools
4(ER20)
4(ER20)
4(ER20)
Radial live tools
1(ER20)+3(ER16)
1(ER20)+3(ER16)
1(ER20)+3(ER16)
Deep hole tool holder
2(ER16)
2(ER16)
2(ER16)
Back machining tools
4(ER16)
4(ER16)
4(ER16)
Back powered tool
4(ER16)
Optional
4(ER16)
Back turning tool holder
--
--
--
Motor power
Spindle(kw)
6.3
6.3
6.3
Back spindle(kw)
4.2
4.2
4.2
Linear drive shaft(kw)
1.1(X1, X2, Y1, Z1, Z2)
1.1(X1, X2, Y1, Z1, Z2)
1.1(X1, X2, Y1, Z1, Z2)
Radial live tool(kw)
1.1
1.1
1.1
Back live tool(kw)
1
1(optional)
1
Cooling pump(kw)
0.4
0.4
0.4
Weight and size
Weight (kg)
3750
3750
3750
Size (mm)
2960x1660x1920
3100x1660x1920
3100x1660x1920
